Wall-Mounted Drinking Troughs

Outdoor Drinking Trough Fountains

With outlet fittings configured to your requirements and a 60mm boxed splashback, this drinking trough is ideal for many applications.


Get a Reseller Quote

Key Features

  • Constructed from 1.2mm 304 grade satin stainless steel
  • Left or right hand drain outlet available
  • Available in 6 lengths as required, or ask us about custom jobs
  • Radius external and internal corners for safety and easy cleaning
  • 900mm, 1200mm, 1500mm, 1800mm , 2400mm and 3000mm available off the shelf
  • Bubbler fittings include silicone mouth guard
  • Choice of Lever handle (for young children) or push button dispensing on bubbler and bottle filler
  • Simply choose your length of trough, then add your outlets to suit. Mix and match to best meet your needs
  • Outlets are available pre plumbed or just on a supply basis for DIY installs.

The internal and external radius corners are designed for safety and easy cleaning. A 60mm cavity in the splashback allows for tapware to be installed with no rear wall penetrations and easy installation of tapware. This trough is perfect for use in Education, public amenities, factories and more.

Trough Options

T-3MSS-BUB90L
T-3MSS-BUB90P
T-3MSS-BFL
T-3MSS-BFP

Suggested mounting height for drinking trough:

  • Infant – 550mm
  • Primary – 700mm
  • Secondary – 900mm

Suggested mounting height for wash trough:

  • Infant – 550mm
  • Primary – 650mm
  • Secondary – 700mm
ModelDescription
PWD-900L3monkeez Wall-mounted drinking trough 900mm, 304SS, LH drain, recommend 2 outlets
PWD-900R3monkeez Wall-mounted drinking trough 900mm, 304SS, RH drain, recommend 2 outlets
PWD-1200L3monkeez Wall-mounted drinking trough 1200mm, 304SS, LH drain, recommend 3 outlets
PWD-1200R3monkeez Wall-mounted drinking trough 1200mm, 304SS, RH drain, recommend 3 outlets
PWD-1500L3monkeez Wall-mounted drinking trough 1500mm, 304SS, LH drain, recommend 3 outlets
PWD-1500R3monkeez Wall-mounted drinking trough 1500mm, 304SS, RH drain, recommend 3 outlets
PWD-1800L3monkeez Wall-mounted drinking trough 1800mm, 304SS, LH drain, recommend 4 outlets
PWD-1800R3monkeez Wall-mounted drinking trough 1800mm, 304SS, RH drain, recommend 4 outlets
PWD-2400L3monkeez Wall-mounted drinking trough 2400mm, 304SS, LH drain, recommend 5 outlets
PWD-2400R3monkeez Wall-mounted drinking trough 2400mm, 304SS, RH drain, recommend 5 outlets
PWD-3000L3monkeez Wall-mounted drinking trough 3000mm, 304SS, LH drain, recommend 6 outlets
PWD-3000R3monkeez Wall-mounted drinking trough 3000mm, 304SS, RH drain, recommend 6 outlets

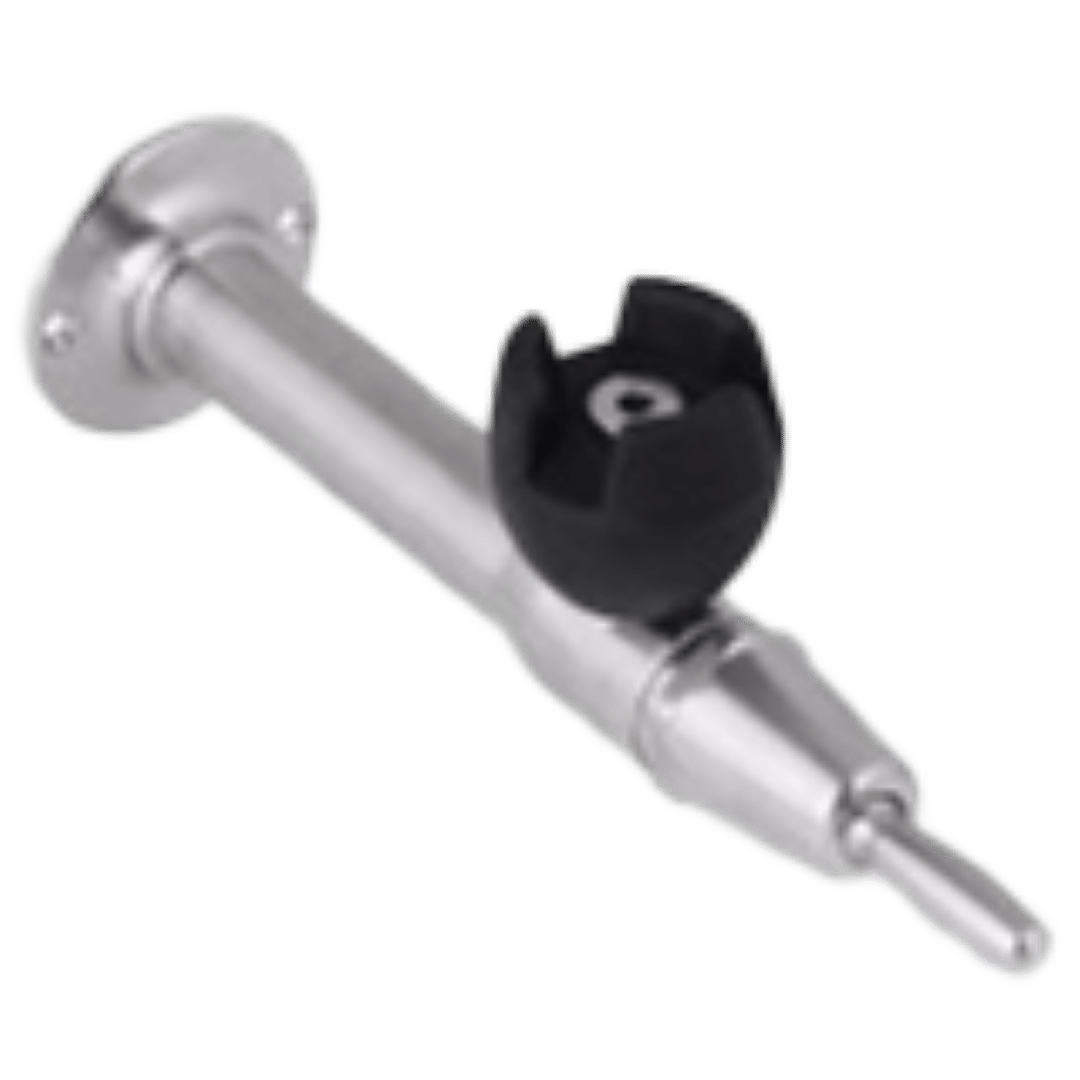

T-3MSS-BUB90L3monkeez drinking trough horizontal lever handle bubbler with silicone mouthguard

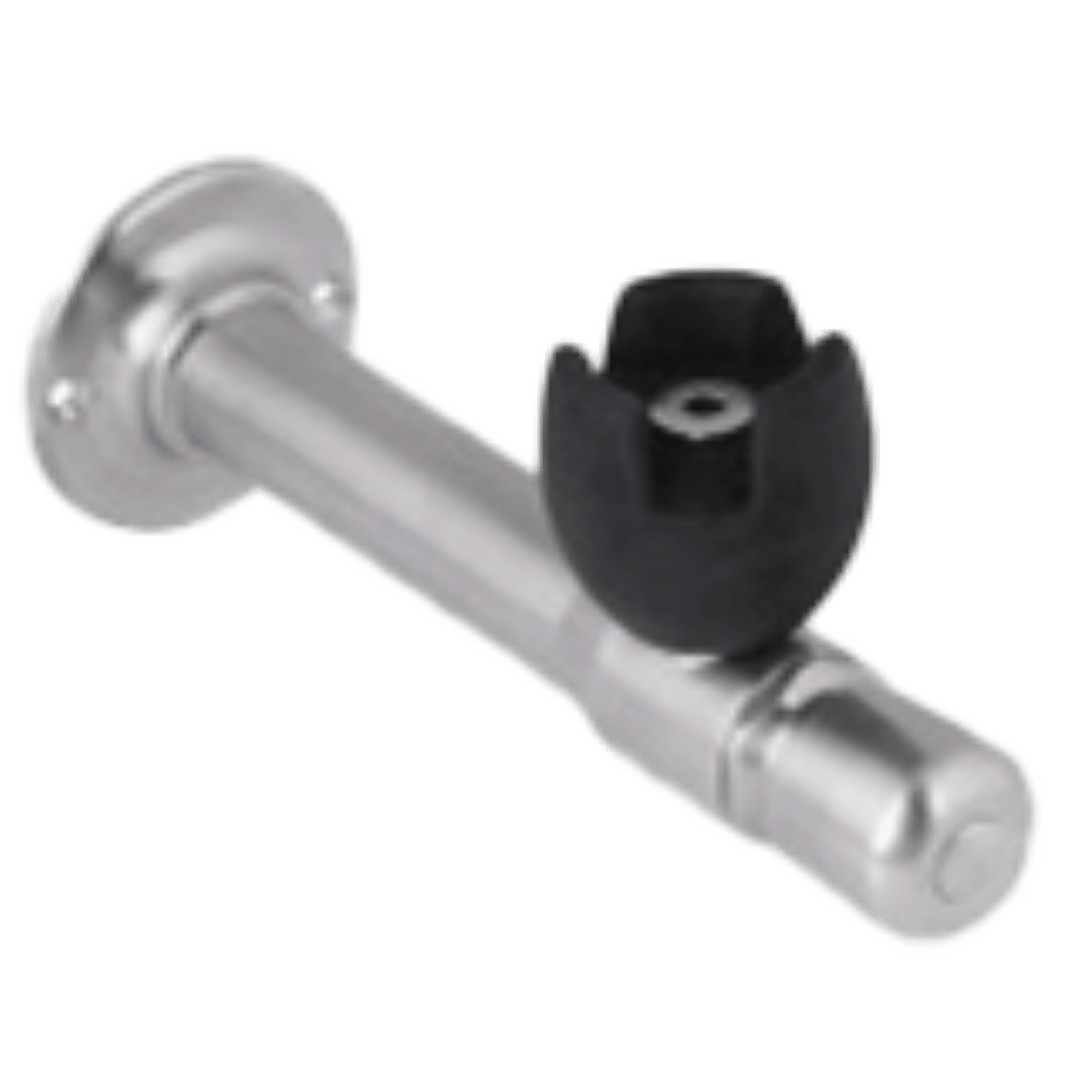

T-3MSS-BUB90P3monkeez drinking trough horizontal push button bubbler with silicone mouthguard

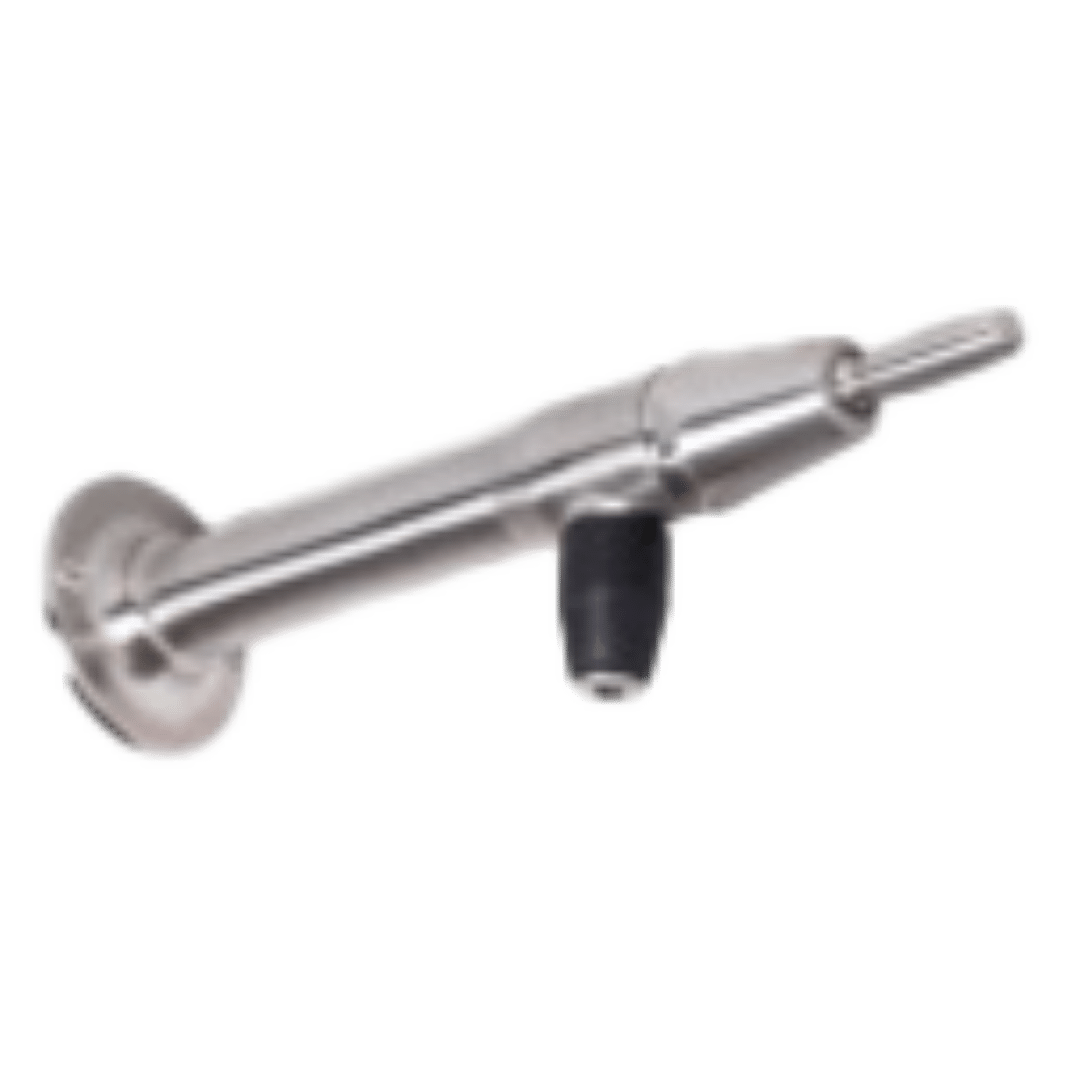

T-3MSS-BFL3monkeez drinking trough horizontal lever handle bottle filler

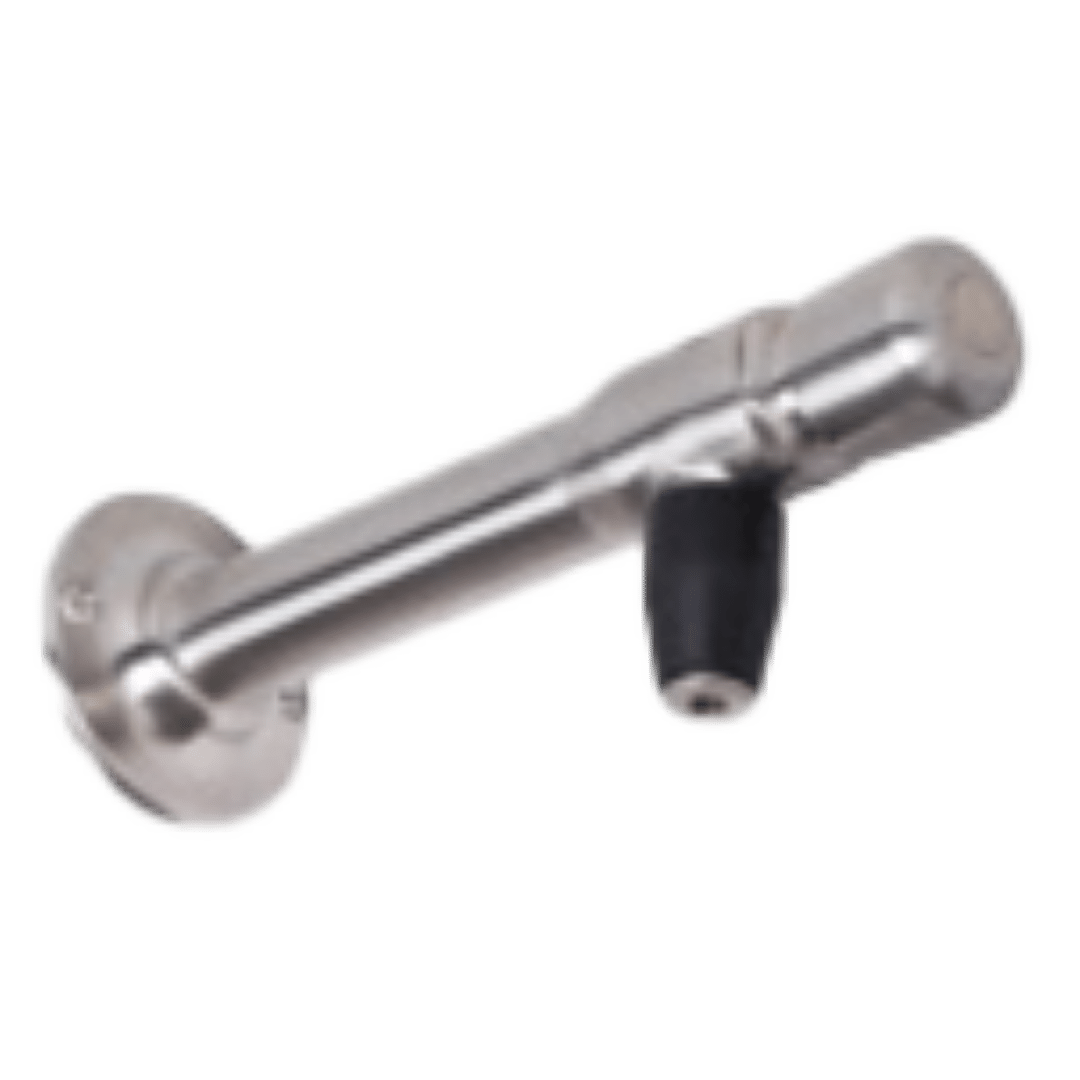

T-3MSS-BFP3monkeez drinking trough horizontal push button bottle filler
M-PREPLUMBING3monkeez pre plumbing per bubbler/bottle filler
WaterMark Logo

Product Attachments

Drinking Trough & Taps Data SheetBIM Files - Drinking Trough & Taps
