Sonata Series

Remote Water Cooling Systems

Sonata Series water cooling systems remotely supply chilled drinking water to a faucet or fountain. Available in two different configurations to suit your application, whether it be a school-yard bubbler or workshop fountain.


Get a Reseller Quote

Key Features

  • Available in two heavy-duty configurations
  • Waterways are lead-free in materials and construction and NSF approved
  • Constructed from heavy-duty galvanised steel
  • Stainless-steel cooling tank
  • Refrigerant R-134a suitable for high ambient conditions

Sonata Series Range

Sonata high capacity remote drinking water systems deliver between 30 and 75.0 L/h (model specific) of water at 10 °C cooled from 27 °C inlet water at 32 °C ambient. The evaporator uses copper evaporator tubes on a stainless-steel water storage tank, both of which are encapsulated in insulation. The R-134a refrigerant system is hermetically sealed and the refrigerant is capillary-tube controlled. An adjustable thermostat having an off position controls the refrigeration system. Available in the larger capacity SMC30, or SMC75 model with a galvanised steel finish.

Optional accessories available include a wall-mounted cradle stainless-steel grille and shelf support (for SMC30 only).

High capacity models offer a 3-year limited warranty.

Model Selection Chart
Model Rated Capacity Compressor HP Full Load Amps Rated Watts Cabinet Finish Net Weight (Approx.)
SMC30 30.0 L/h 1/4 4.8 A 550 W Galvanised Steel 24 kg
SMC75 75.0 L/h 1/2 3.7 A 814 W Galvanised Steel 26 kg

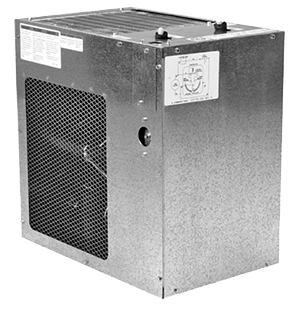

SMC30
SMC75

Product Attachments

Sonata Series Data Sheet
Sonata Series
