Surface-Mounted and Wall Recessed Bottle Fillers
Surface-Mounted and Wall Recessed Bottle Fillers
Oasis bottle filler units offer refrigerated drinking water with both a touch-free, electronic automatic dispense mechanisms as well as manual button option. Perfect for high-volume applications, this unit utilises R-134a refrigerant with a high-performing refrigeration system. Our on wall model is ideal for space saving applications. Our surface mounted models are perfect for installations with limited space.
Get a Reseller Quote
Key Features
- Touch free, electronic automatic dispense options
- Heavy-duty steel frame with a stainless steel finish
- Integrated bottle counter and filter monitor
- UV filtration at point of dispense on Quasar models
- Built-in 100-micron strainer stops particles before they enter the waterway
- Large alcove to fit most sports bottles
- Built-in drain – no drip tray to empty
- Lead free waterway and watermarked.
- Surface mounted or wall recessed options available
- High efficiency cooling system and refrigerant R-134a
Oasis bottle fillers come with either manual or automatic contactless dispense options, and can be either refrigerated or unrefrigerated. Quasar UV LED filtration is also available as an option. Our surface mounted models are perfect for installations with limited space.
Oasis bottle filler units offer refrigerated drinking water with both a touch-free, electronic automatic dispense mechanisms as well as manual button option. Perfect for high-volume applications, this unit utilises R-134a refrigerant with a high performing refrigeration system. Our on wall model is ideal for space saving applications.
A 100-micron strainer stops particles entering the lead-free waterway and a heavy-duty galvanised steel frame making the unit extra durable. The auto dispense versions of the bottle filler also come with a built-in bottle counter, filter monitor and programmable time-out feature.
Please note: For refrigerated models, the unit is fixed to the surface, but a wall cavity is required to fit the chiller behind the lower half of the unit. Alternatively, this can be mounted remotely and water lines run to the unit. Contact us for details.
Highlights
- Surface mount bottle filler ideal for space saving
- Wall recessed options provide a flush finish and professional appearance
- Plastic alcove has Freshield silver impregnated technology
- Lead free waterways and watermarked
- Unrefrigerated options can be paired with a remote chiller for split system style install. Multiple fillers can be run off one chiller in some cases.
Recommended Models

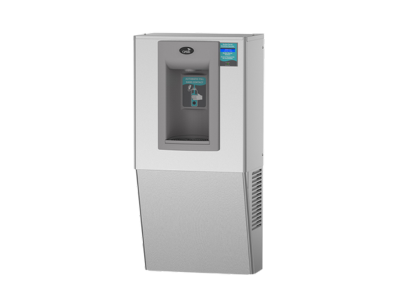

- Buildings with limited space or no wall cavity – Model PN8EBFY – Surface Mounted Compact Bottle Filler – Refrigerated – Sensor Dispense
- Semi Recessed Option – AC-MWSM8EBFY – Surface Mount Bottle Filler – Refrigerated – Sensor Dispense
- New builds with sufficient cavity wall space or service room access behind the bottle filler – Model MW8EBFY Wall Recessed Bottle Filler – Refrigerated Sensor Dispense
- Medical facilities should use the Quasar UV Filtration options of either MWEBQY (in wall) or MWSM8EBQY (surface mount)
- Check individual datasheets for suggested specification wording
Surface-Mounted and Wall Recessed Bottle Fillers
Model Number | Refrigerated | Dispense Mechanism | Vandal Resistant | |
AC-MWEBQY | No | Sensor | No | |

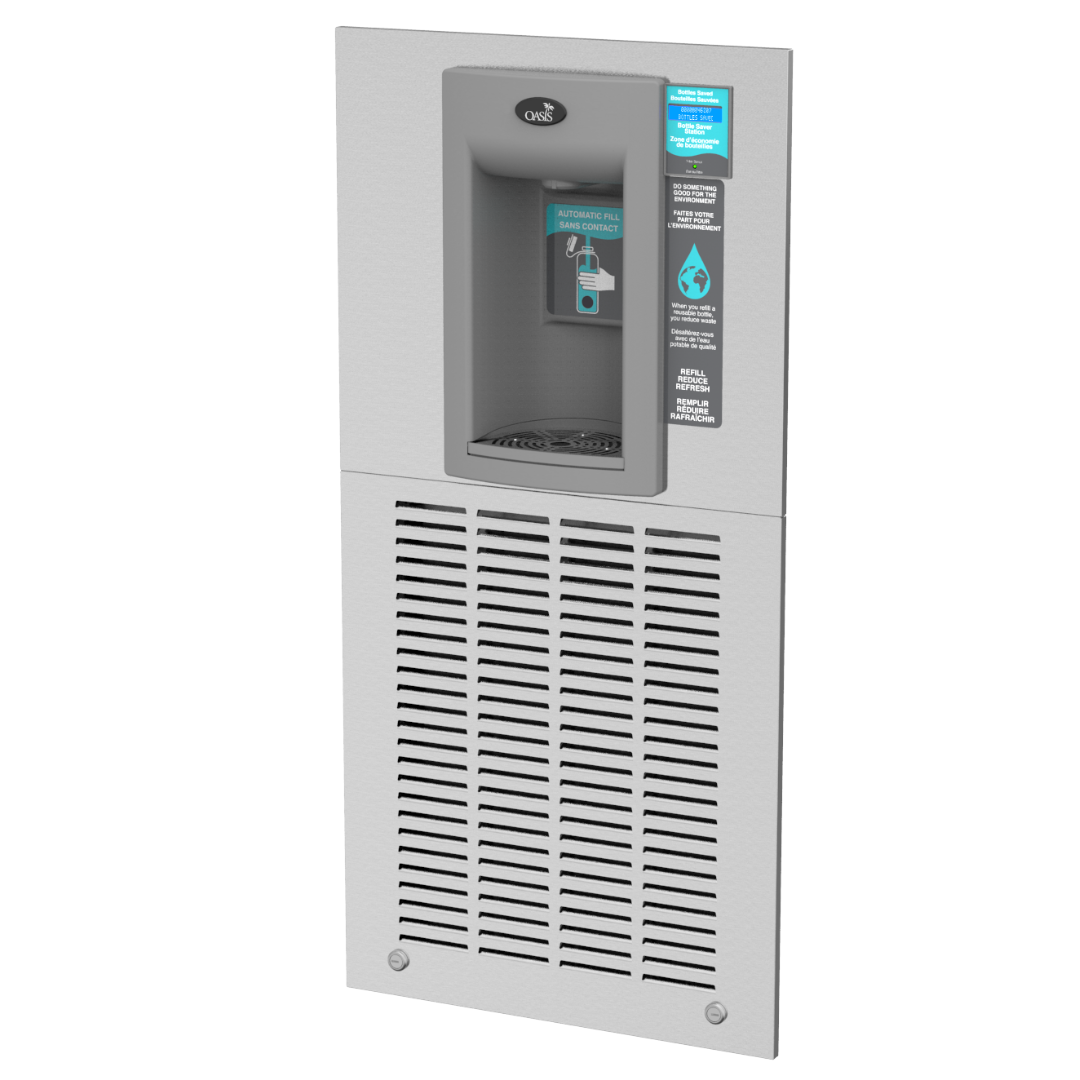

AC-MW8EBFY | Yes – 60L/h | Sensor | No | |
AC-MWEBFY | No | Sensor | No | |

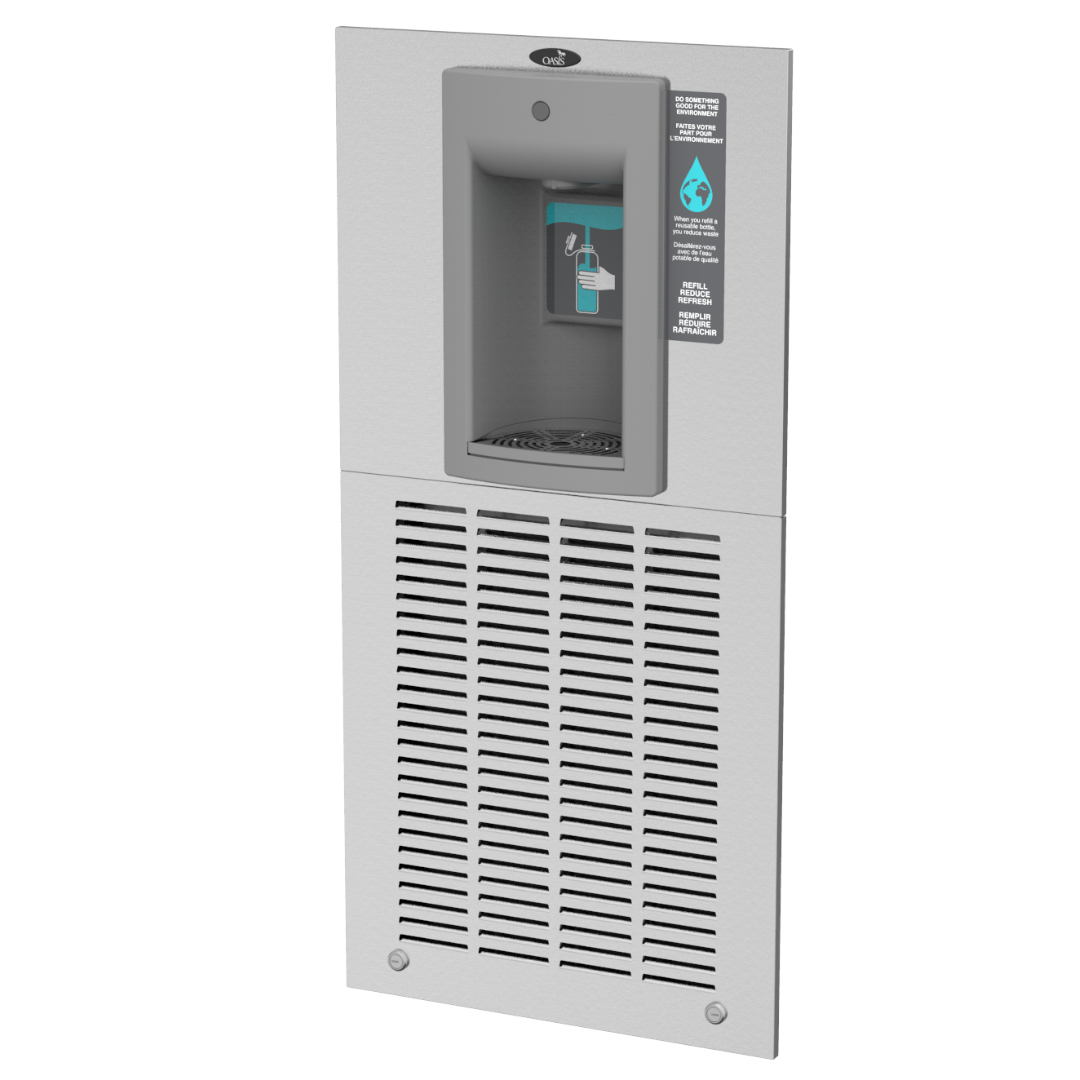

AC-MW8SBFY | Yes – 60L/h | Manual Push Button | No | |
AC-MWSBF | No | Manual Push Button | No | |
AC-MWSM8EBQY | No | Sensor | No | |
AC-MWSM8EBFY | Yes – 60L/h | Sensor | No | |
AC-MWSMEBFY | No | Sensor | No | |
AC-PN8EBFY | Yes – 28L/h | Sensor | No | |

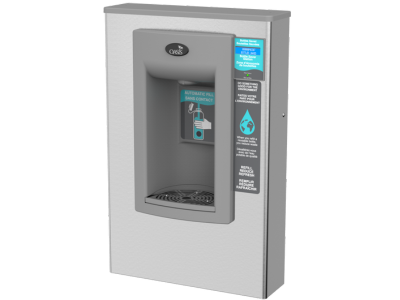

AC-PWSMEBQY | No | Sensor | No | |
AC-PWSMEBFY | No | Sensor | No | |
AC-PWSMSBF | No | Manual Push Button | No |
